BodenWarme Laminate/Wood Flooring Electric Underwood Heating Kit with White iSTAT Thermostat

Made for laminate and floating engineered wood floors, this BodenWärme Electric Underwood Heating Kit featuring a White iSTAT Thermostat is an innovative heating solution that operates smoothly at AC230V +/-10% 50/60Hz, providing optimal results for year-round cosiness. Unlike traditional radiator heating systems, which are notorious for creating uneven hot and cold spots in your room, this BodenWärme underfloor heating kit emerges as a robust and dependable alternative, ensuring even heat distribution across your room's floor.

This underfloor heating system not only ensures a pleasant temperature throughout your room due to the strategic placement of the heat source but also guarantees warm and cosy feet while keeping your head comfortably cool - embodying the ideal temperature profile.

Features & Benefits: BodenWarme Laminate/Wood Flooring Electric Underwood Heating Kit with White iSTAT Thermostat

• Achieve perfect temperature distribution in every corner, keeping feet warm and heads cool
• Operates seamlessly at AC230V +/-10% 50/60Hz, ensuring year-round comfort without hot and cold spots
• Mats feature dual-core wire, ultra-thin 1mm profile, and Fluoropolymer insulation
• Aluminum mat composition ensures even heat distribution
• Kit includes a chic white iSTAT thermostat with Wi-Fi connectivity
• Thermostat also has a touchscreen, adaptive learning, and Key Lock function
• Lifetime guarantee for heating mats; separate warranty for the thermostat

Characterised by its advanced features, the heating mats feature dual-core wire with a simple, single connection point, distinguishing it from many other carbon film systems. The ultra-thin encapsulated 1mm wire minimises any rise in floor height, ensuring smooth integration with your current flooring. Durability is also a top priority, thanks to the robust Fluoropolymer heating element insulation.

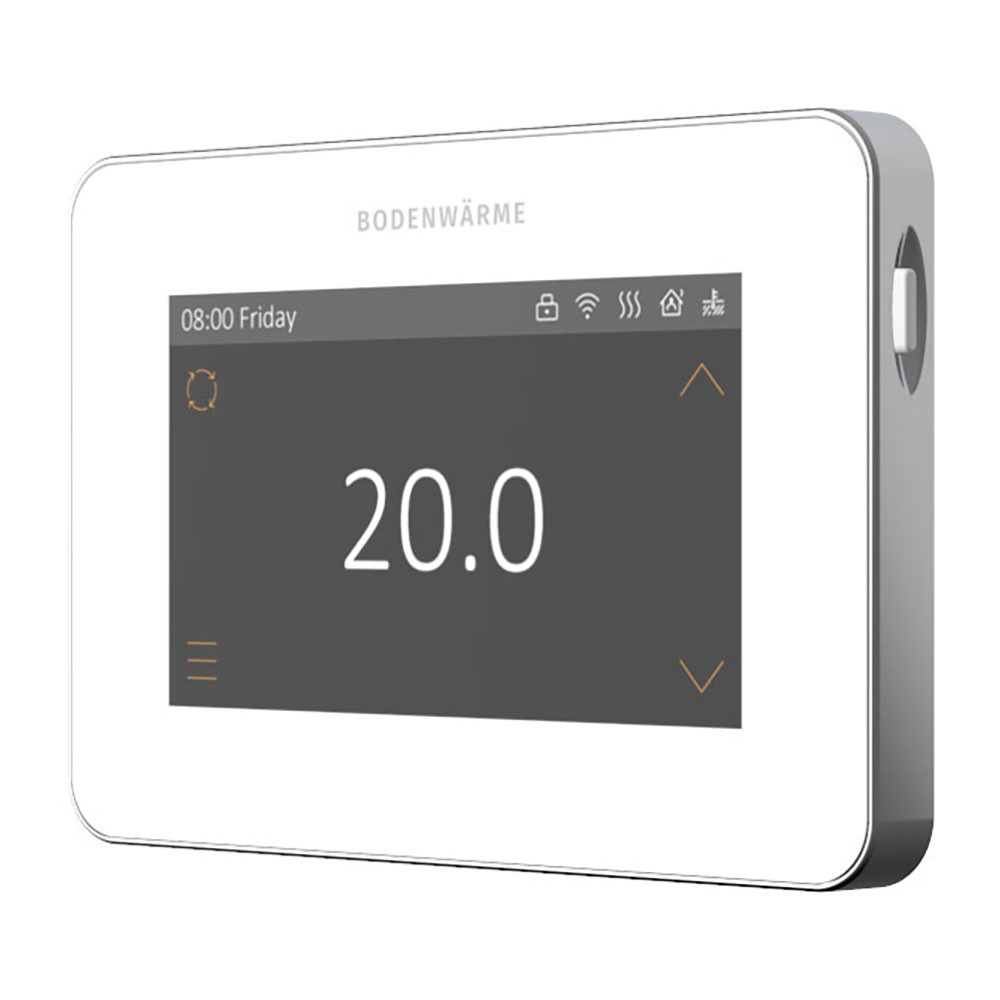

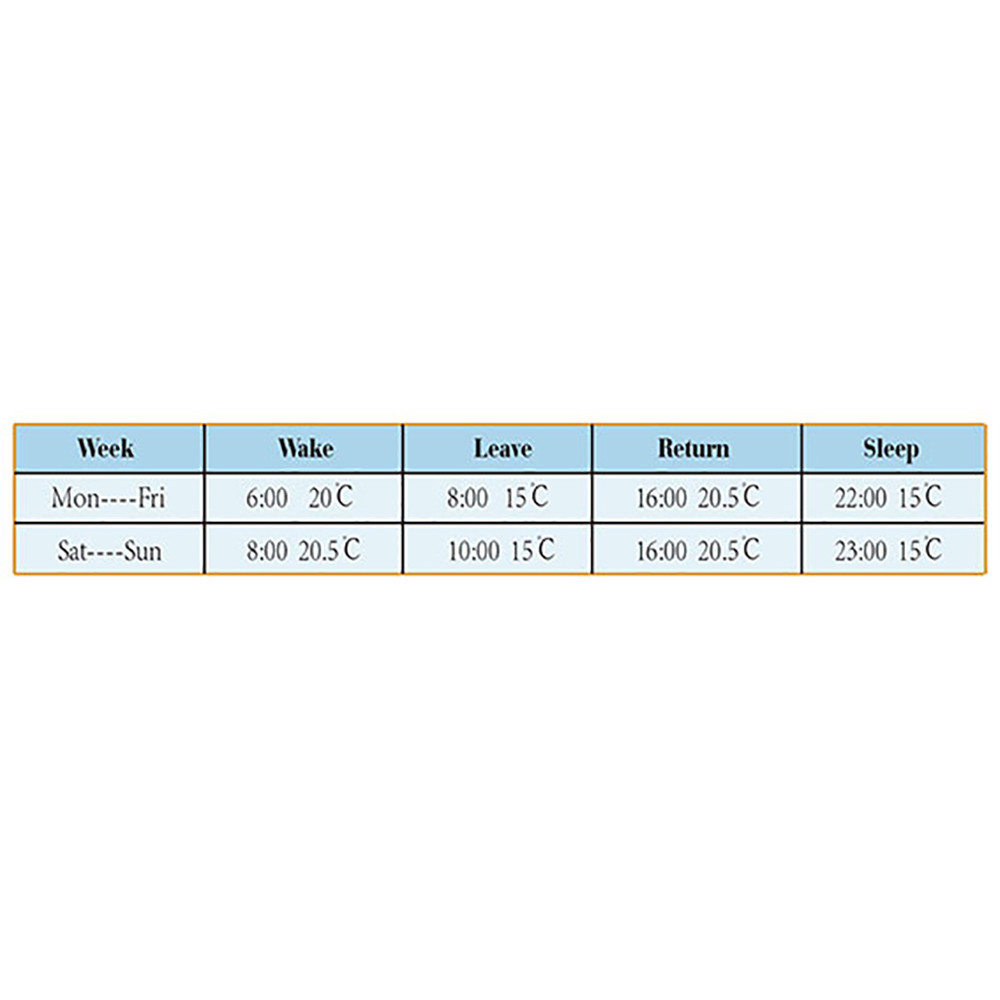

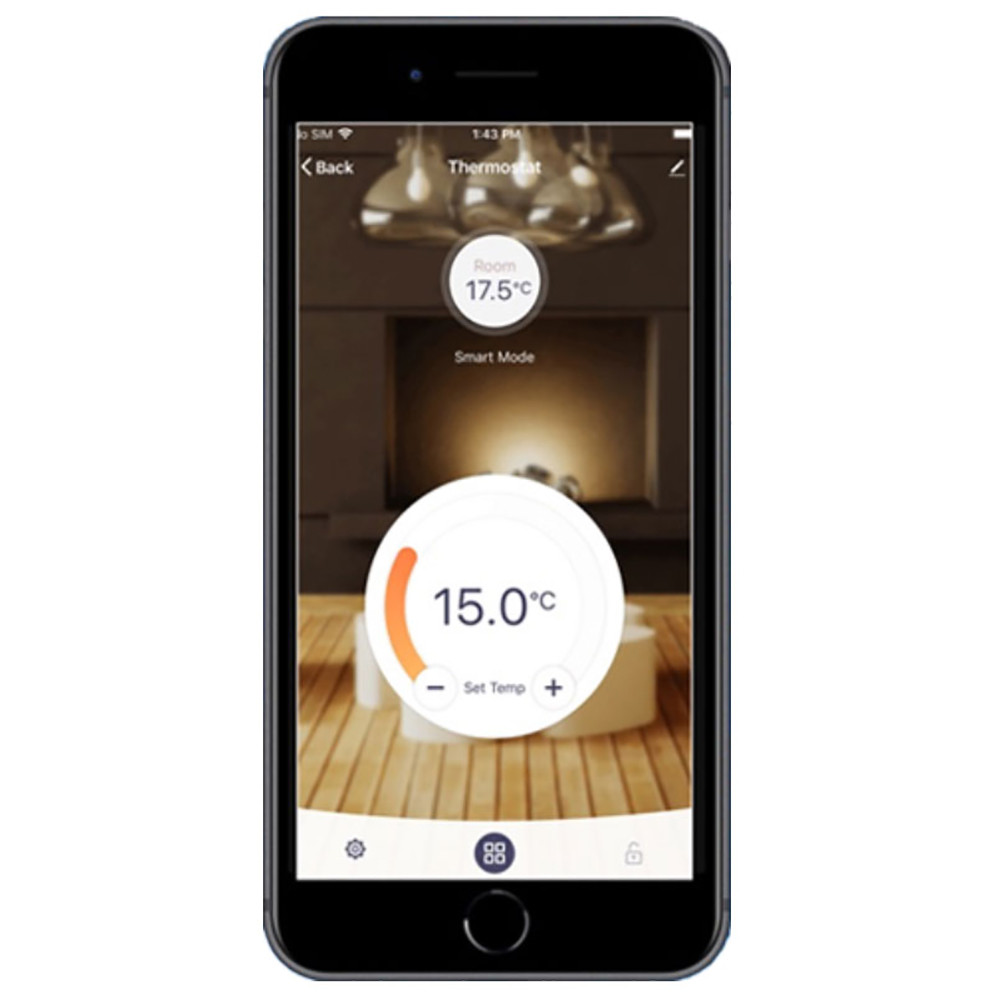

Included in your kit is a white iSTAT thermostat, empowering you to effortlessly control your heating with Wi-Fi connectivity, enabling convenient remote management through your Android or iOS device. The responsive touchscreen enhances usability, and adaptive learning ensures the system adjusts to the distinctive characteristics of your home. Schedule your heating for the entire week, incorporating holiday functionality, and employ the Key Lock function to prevent unintentional alterations to settings or programs.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you will first need to work out the area of the whole floor space by multiplying the length of the floor by the width. Once this is done, you should then subtract any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eradicate the risk of causing hot spots in your room. When you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between cables and around the perimeter of the room.

Kit Contents

• BodenWärme's 140w/m² foil encased Underfloor Heating Mat designed for use under laminate and wood floors
• An iSTAT Electric Underfloor Wi-Fi Thermostat in White
• A Floor Temperature Sensor with 3m Cable and Flexible Conduit
• A Comprehensive Installation Manual
• An aluminium joint tape
• A Lifetime Warranty

Standards & Certification

• RoHS (Restriction of Hazardous Substances Directive) Compliant
• CE Certified

Please note:

• For optimal performance, it is essential to pair your BodenWärme under laminate heating mats with either the specified BodenWärme 5mm XPS underlay insulation or an equivalent soft XPS underlay expressly recommended for electric under laminate heating, and approved accordingly.
• The maximum total size of 140w/m² BodenWärme laminate and wood heating that a single thermostat can control is 24m². Should you require to cover an area greater than 24m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not surpass the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
