BodenWarme Underfloor Heating Mat for Laminate / Wood + Manual Thermostat

A premium heating solution designed for optimal warmth and comfort throughout your home, BodenWärme's Electric Underwood Heating Kit with Manual Thermostat is specifically designed for laminate and floating engineered wood floors. This robust and reliable underfloor heating system ensures a consistently cosy environment throughout your living space, while the easy-to-use thermostat ensures hassle-free operation.

Experience the luxury of evenly distributed heat across your floor, eliminating the common issue of hot and cold spots associated with conventional radiator heating systems. BodenWärme's commitment to quality is reflected in the lifetime guarantee covering all heating mats, complemented by separate manufacturer-backed warranties for the thermostats.

Features & Benefits: BodenWarme Underfloor Heating Mat for Laminate / Wood + Manual Thermostat

• An efficient heating solution for laminate and engineered wood floors
• Ensures consistent and cosy warmth throughout your living space
• Lifetime guarantee on heating mats, with separate warranties for thermostats
• Dual-core wire with a single connection point for a sleek and minimalist design
• Ultra-thin 1mm wire minimises floor height increase
• Tough Fluoropolymer insulation and aluminium mat composition for durability and even heat distribution
• Includes a user-friendly white manual thermostat with LED indicator
• Operates at AC230V+/-10% 50/60Hz for efficient year-round comfort

The dual-core wire of the heating mats, with a single connection point, sets it apart from other carbon film systems. The ultra-thin encapsulated 1mm wire minimises the increase in floor height, providing a sleek and unobtrusive heating solution. The tough Fluoropolymer heating element insulation ensures durability, while the aluminium mat composition evenly spreads the warmth.

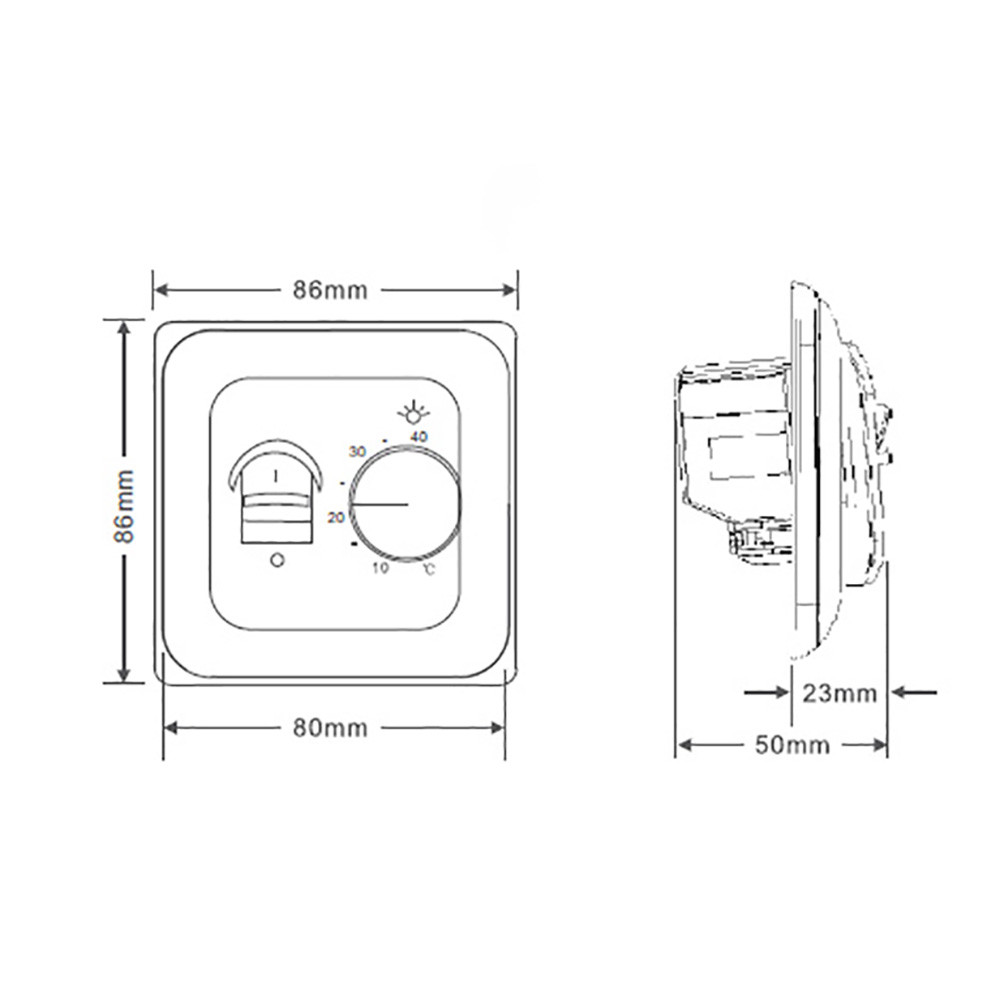

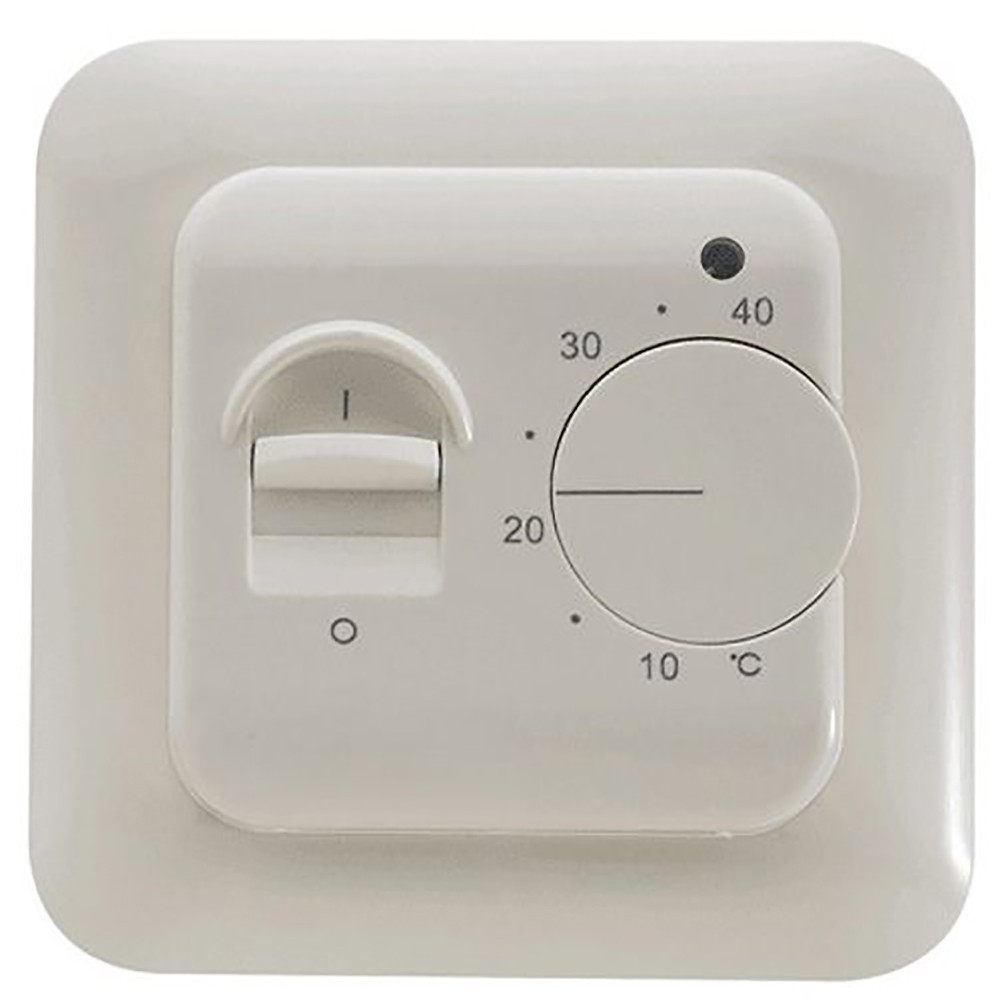

Maintaining the perfect temperature profile is effortless with the white manual thermostat. Its LED indicator signals when the heating is active, and it fits seamlessly into a standard single gang back box with a depth of 45mm. Ideal for intermittent use, the thermostat is user-friendly, allowing simple adjustments to achieve the desired temperature while efficiently controlling heating based on your floor's temperature.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you will first need to work out the area of the whole floor space by multiplying the length of the floor by the width. Once this is done, you should then subtract any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eradicate the risk of causing hot spots in your room. When you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between cables and around the perimeter of the room.

Kit Contents

• BodenWärme's 140w/m² foil encased Underfloor Heating Mat designed for use under laminate and wood floors
• A Manual Electric Underfloor Thermostat in White
• A Floor Temperature Sensor with 3m Cable and Flexible Conduit
• A Comprehensive Installation Manual
• An aluminium joint tape
• A Lifetime Warranty

Standards & Certification

• RoHS (Restriction of Hazardous Substances Directive) Compliant
• CE Certified

Please note:

• For optimal performance, it is essential to pair your BodenWärme under laminate heating mats with either the specified BodenWärme 5mm XPS underlay insulation or an equivalent soft XPS underlay expressly recommended for electric under laminate heating, and approved accordingly.
• The maximum total size of 140w/m² BodenWärme laminate and wood heating that a single thermostat can control is 24m². Should you require to cover an area greater than 24m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not surpass the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
