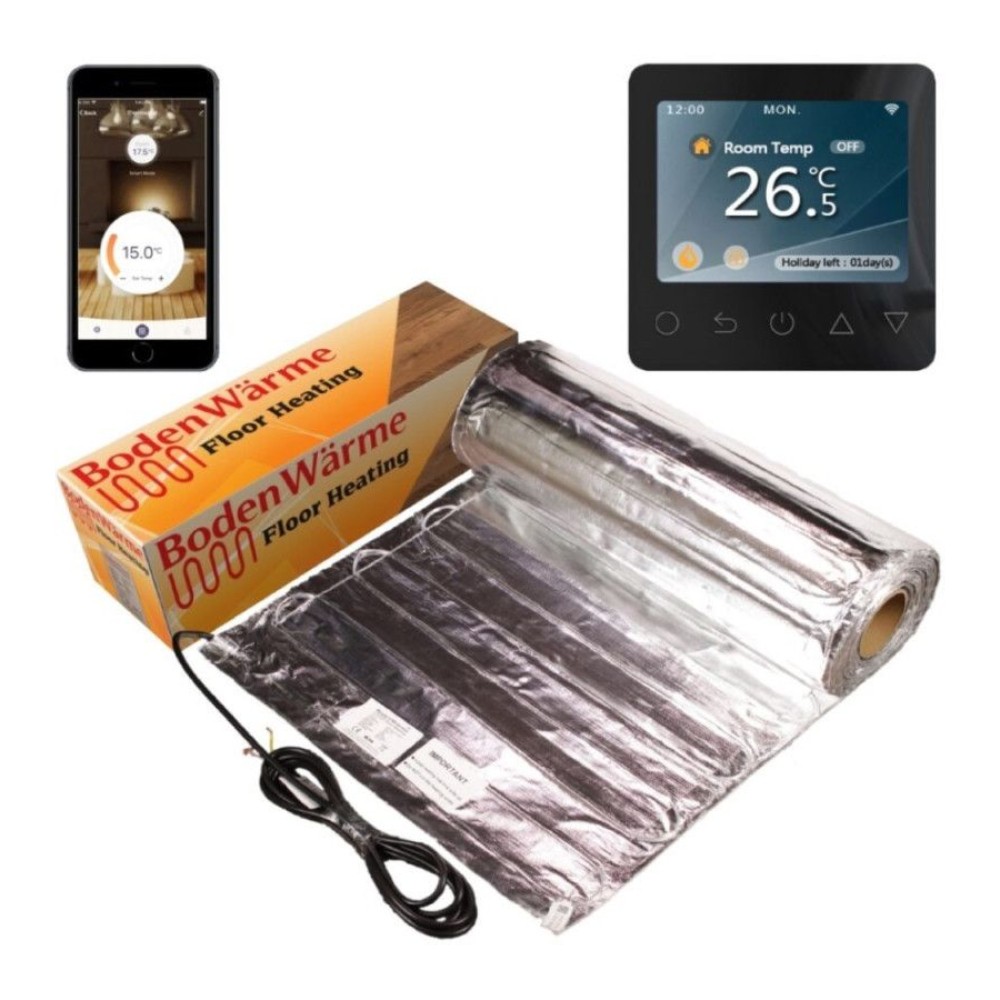

BodenWarme Underfloor Heating Kit for Laminate / Wood + Black WiFi Thermostat

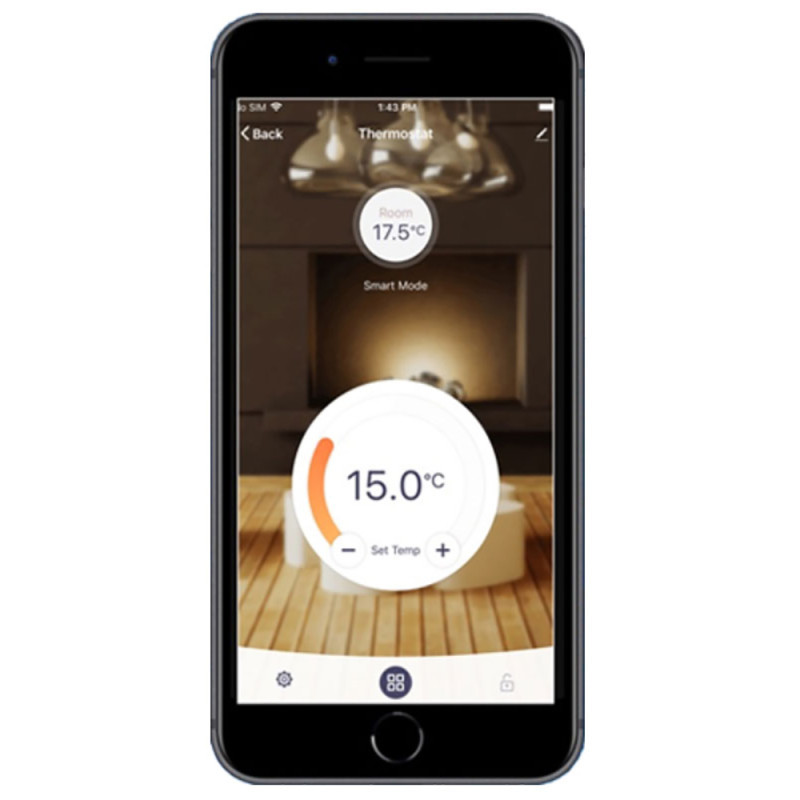

The BodenWärme Electric Underwood Heating Kit with Black Wi-Fi Thermostat is a state-of-the-art underfloor heating solution designed for laminate and floating engineered wood floors. With Wi-Fi connectivity, you can conveniently control the system remotely through your Android or IOS device, ensuring comfort from anywhere, be it at home, work or out and about.

The heating mats feature a dual-core wire with a single connection point, minimising floor height increase. The tough Fluoropolymer heating element insulation and aluminium mat composition ensure durability and even heat distribution. Enjoy warm feet and a cool head, achieving the perfect temperature profile for comfortable living conditions. Operating at AC230V +/-10% 50/60Hz, this system offers efficient year-round comfort, eliminating the hot and cold spots associated with traditional radiator heating. The even positioning of the heat source and its aluminium construction guarantees a comfortable temperature in every corner of your room, creating a consistently warm and inviting living space.

Features & Benefits: BodenWarme Underfloor Heating Kit for Laminate / Wood + Black WiFi Thermostat

• Wi-Fi connectivity allows convenient remote control of temperature via Android or IOS devices
• Heating mats with dual-core wire and single connection point minimise floor height increase
• Tough Fluoropolymer heating element helps ensure even heat distribution
• Efficient AC230V +/-10% 50/60Hz operation
• Eliminates hot and cold spots which can be an issue with traditional radiators

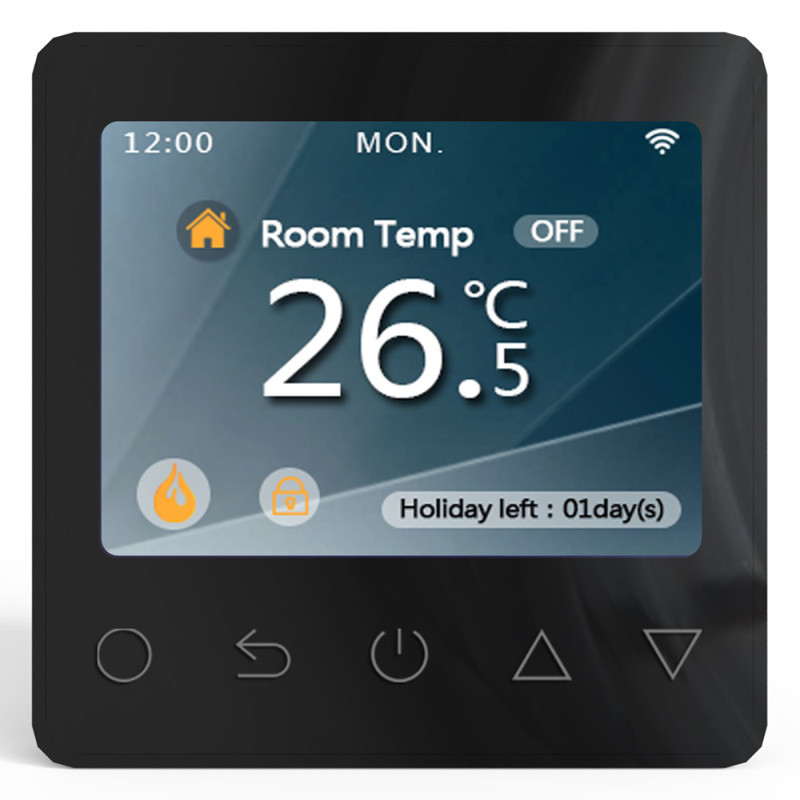

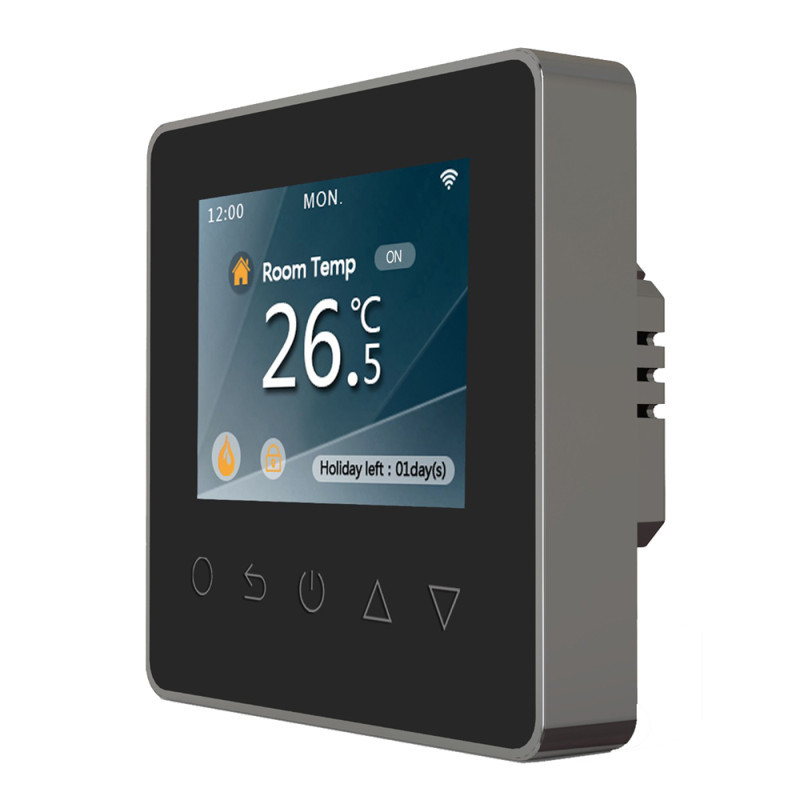

• Comes with a sleek thermostat with gloss black fascia and colour touchscreen
• Thermostat also features adaptive learning, separate weekday/weekends programming, and a Key Lock function
• Lifetime guarantee for heating mats; separate warranty for the thermostat

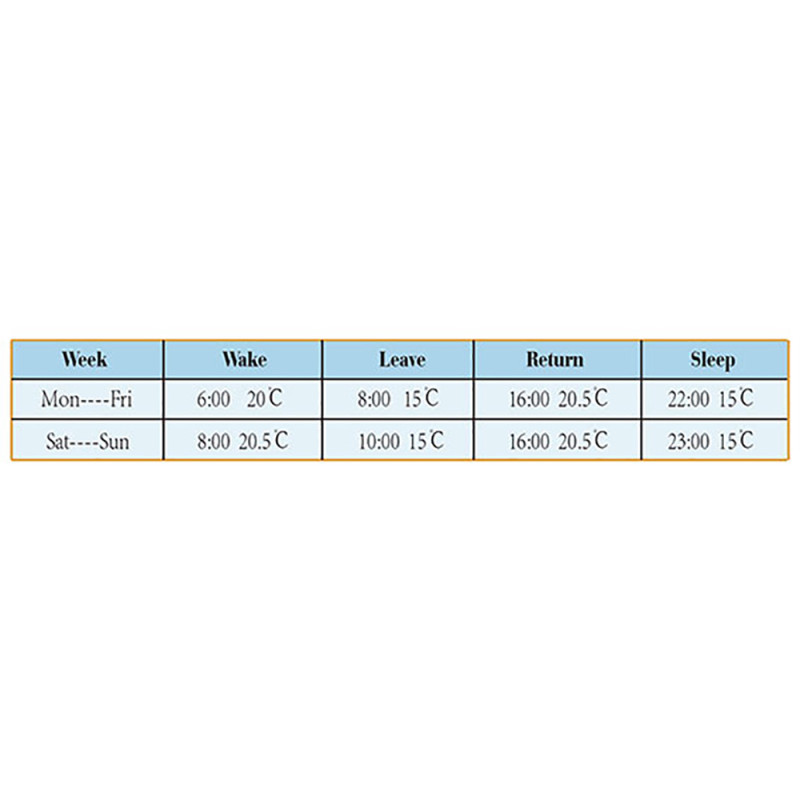

The sleek thermostat, with its gloss black fascia and colour screen, combines convenience with modern design. Its sensitive touchscreen enhances usability, and the adaptive learning feature ensures the system adapts to your home's unique properties. With separate programming for weekdays and weekends (Mon-Fri and Sat-Sun) and a Key Lock function for added security, this thermostat offers flexibility and peace of mind.

Choose the BodenWärme Electric Underwood Heating Kit if you're looking for a robust and reliable underfloor heating solution, that ensures not only warmth but also modern convenience. Backed by a lifetime guarantee on heating mats and manufacturer-backed warranties on thermostats, this system is a long-lasting and trustworthy addition to your home.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you will first need to work out the area of the whole floor space by multiplying the length of the floor by the width. Once this is done, you should then subtract any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eradicate the risk of causing hot spots in your room. When you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between cables and around the perimeter of the room.

Kit Contents

• BodenWärme's 140w/m² foil encased Underfloor Heating Mat designed for use under laminate and wood floors
• A Wi-Fi Electric Underfloor Thermostat in Black
• A Floor Temperature Sensor with 3m Cable and Flexible Conduit
• A Comprehensive Installation Manual
• An aluminium joint tape
• A Lifetime Warranty

BodenWärme laminate and wood heating mat features:

• Designed for simple installation and compatibility, the heating mat features dual-core wire with a single connection point. The tough and rugged fluoropolymer heating element insulation aims to enhance durability and extend lifespan, meanwhile floor height increases are kept at a minimum thanks to the 1mm ultra-thin encapsulated wire. For confident use and peace of mind, the mat is supplied with a lifetime manufacturer-backed warranty, full CE certification and ROHS compliance.

Standards & Certification

• RoHS (Restriction of Hazardous Substances Directive) Compliant
• CE Certified

Please note:

• For optimal performance, it is essential to pair your BodenWärme under laminate heating mats with either the specified BodenWärme 5mm XPS underlay insulation or an equivalent soft XPS underlay expressly recommended for electric under laminate heating, and approved accordingly.
• The maximum total size of 140w/m² BodenWärme laminate and wood heating that a single thermostat can control is 24m². Should you require to cover an area greater than 24m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not surpass the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
