BodenWarme Electric Undertile Heating Mat 200w with White Wifi Thermostat

Are you in need of an easy-to-install, energy-efficient underfloor heating system that will bring warmth and comfort to your home? If so, BodenWärme's Electric Undertile Heating Mat with a white WiFi Electric Underfloor Heating Thermostat could be the perfect solution for you. Specifically designed for ceramic, porcelain, and natural stone flooring, the BodenWärme 200 w/m² electric underfloor heating system provides a comfortable and consistent temperature and reduces the chance of hot and cold spots in your room.

The BodenWärme 200w Electric Undertile Heating Mats are most effective in rooms that experience high levels of heat loss, such as conservatories. BodenWärme's 200-watt Electric Undertile Heating Mats provide a higher output than the 150w version thanks to the way the cables are spaced within the mats. The 200w Electric Undertile Heating Mats ensures your room will heat up quickly and maintain the heat within your room for more extended periods.

Features & Benefits: BodenWarme Electric Undertile Heating Mat 200w with White Wifi Thermostat

• Ideal for rooms with high levels of heat loss
• The mats feature a dual-core wire with simple, single connection point
• Robust 3.6mm wire keeps the increase in floor height to a minimum
• Tough Fluoropolymer conducting insulation with PVC exterior ensures durability
• Rapid fit sticky mesh mat ensures ease and speed of installation
• Glossy white thermostat design with colour touchscreen
• WiFi connectivity, allowing you to control temperature remotely
• Thermostat has a range of features including Key Lock, 7-day weekly programming and adaptive learning
• Lifetime manufacturer-backed warranty (heat mats) for total peace of mind

Made from tough and durable Fluoropolymer conducting insulation with PVC outer insulation, BodenWärme's 200w/m² underfloor heating mat with rapid fit sticky mesh technology helps to ensure a quick and hassle-free installation process. Unlike radiators that emit heat from a single point within the room, often resulting in hot and cold spots, these mats will create an even distribution of heat. The temperature profile of underfloor heating is also much closer to the optimal heating profile, meaning your feet are kept nice and warm whilst your head remains cool. For best results, it is recommended that you use 6mm or 10mm insulation boards when installing your heat mats, which can increase performance and efficiency by up to 50%.

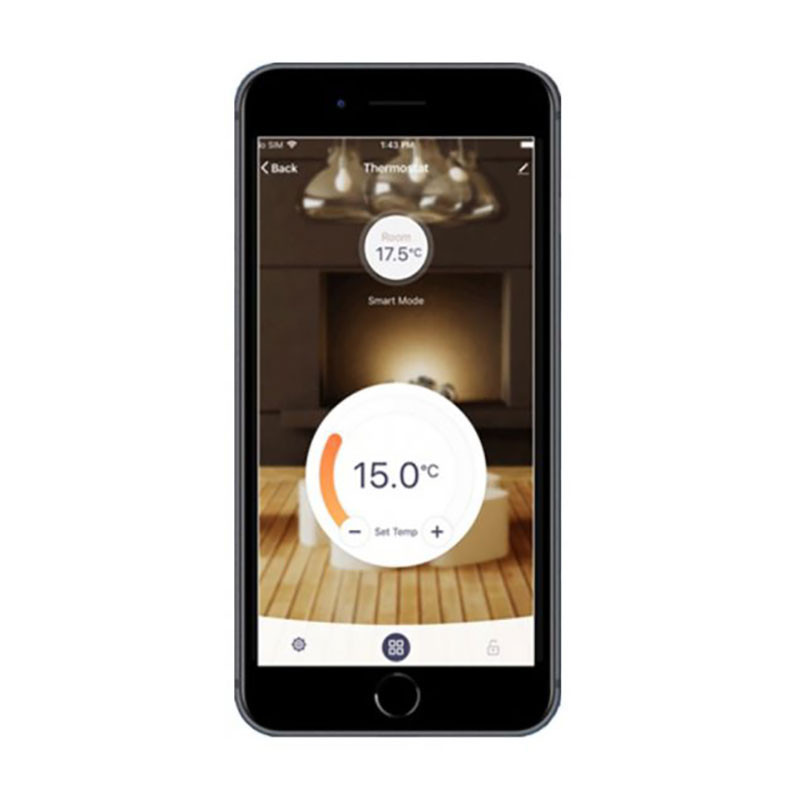

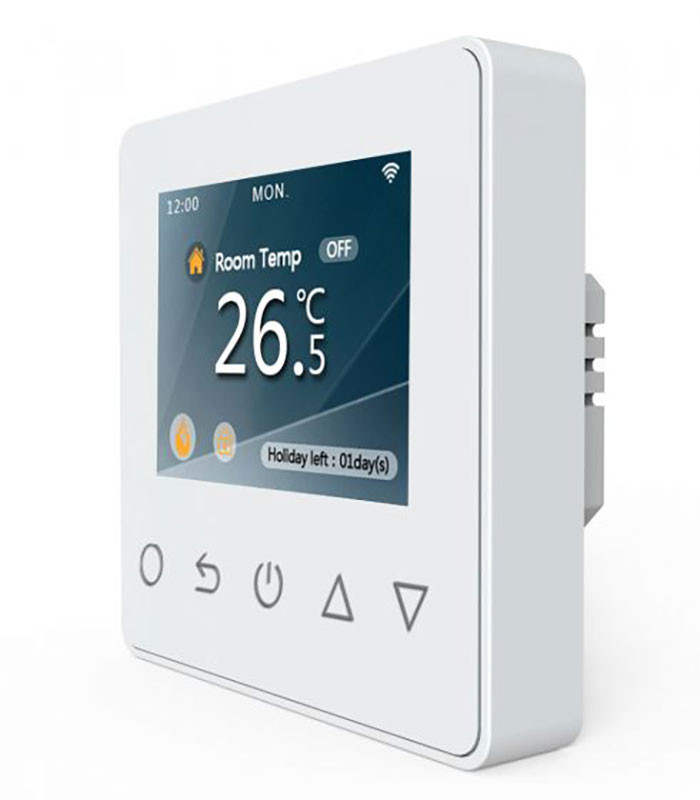

Included with BodenWärme's heating mats is a colour touchscreen WiFi Electric Underfloor Heating Thermostat in a contemporary white gloss finish. The sensitive touchscreen makes it incredibly easy to use, and the 'Key Lock' function ensures that your thermostat settings are locked in, should they be changed by mistake. Suppose you wish to set a weekly schedule for your underfloor heating. In that case, you can use the inbuilt scheduling programme, allowing you to organise weekdays and weekends separately. With WiFi connectivity, you can even control your thermostat remotely via your IOS or Android device for extra convenience.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you need to initially work out the area of the entire floor space by multiplying the width of the floor by the length. Once this is done, you should then deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eliminate the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should subtract a further 10% from your total as this will allow for the spacing between mats and around the perimeter of the room.

Kit Contents

• 1 x BodenWärme 200w/m² underfloor heating mat with rapid fit sticky mesh
• 1 x White WiFi Electric Underfloor Thermostat
• 1 x Floor temperature sensor with 3m cable and flexible conduit
• 1 x Comprehensive installation manual
• 1 x 25mm fixing tape
• Lifetime manufacturer-backed warranty (heat mats)

Installation

• BodenWärme's heat mats are particularly suited to standard-shaped rooms and large areas. To install, simply roll out your mat and cut the rapid-fit sticky mesh backing and turn back in the opposite direction as required. With each mat consisting of wires only 3.6mm, these extremely durable and long-lasting mats minimise the increase in the overall floor height of your room. For additional simplicity, the dual-core wire has a single connection point.

Standards & Certification

• CE Certified
• RoHS Compliant (for guaranteed safety)

Please note:

• Heat mats cannot be shortened or have excess cut off at the end. Unfortunately, once the mats have been cut/trimmed, you cannot return them.
• The maximum total size of 200w/m² BodenWärme underfloor heating mats that a single thermostat can control is 16m². Should you need to cover an area greater than 16m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), defending against electric shock. This can be located within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not surpass the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
