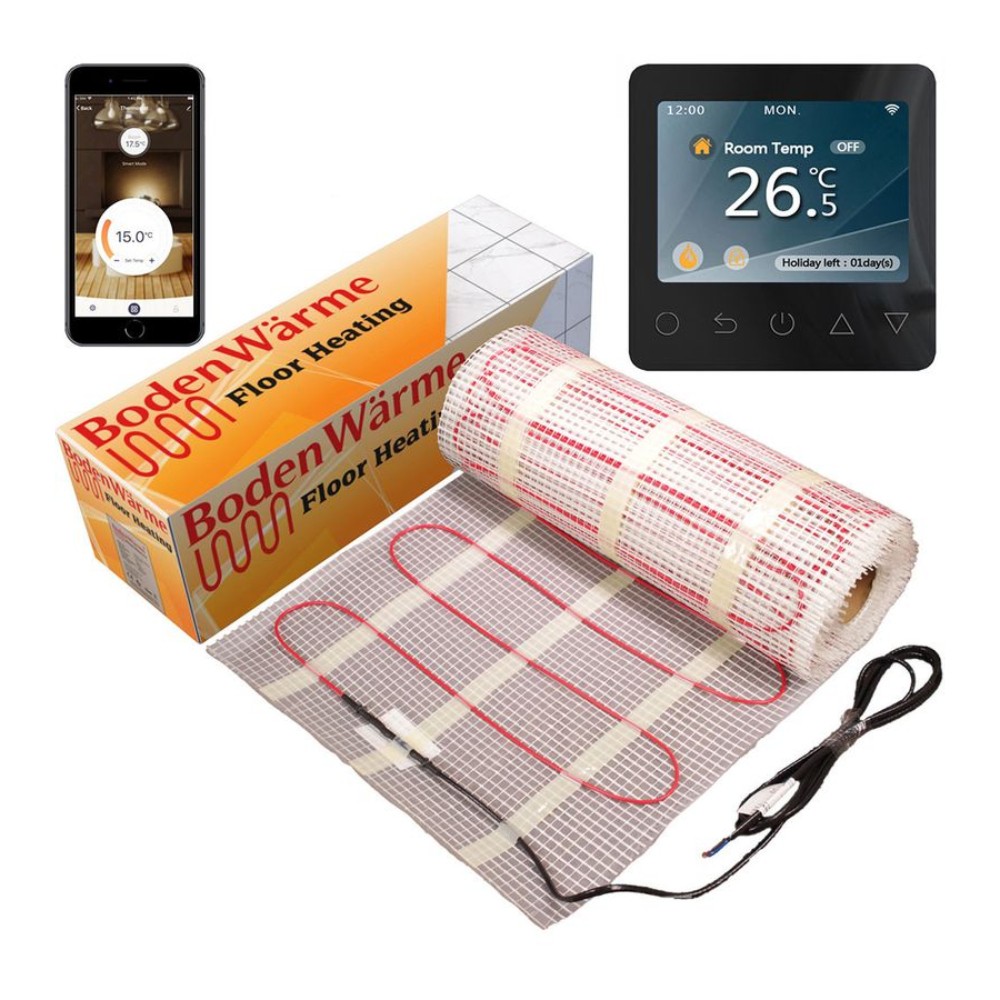

BodenWarme Electric Undertile Heating Mat 200w with Black Wifi Thermostat

Hardwearing and cost-effective, this BodenWärme 200w Electric Undertile Heating Mat with black, touchscreen WiFi Electric Underfloor Heating Thermostat is a great heating solution for rooms that include ceramic, porcelain, and natural stone flooring. This 200-watt electric underfloor heating system has been designed to suit rooms that experience high levels of heat loss, such as conservatories. Due to the way the cables within the mats are spaced, the 200w Electric Undertile Heating Mats allow for quicker heat-up time and retain the heat within your rooms for much longer. The system provides a comfortable and consistent temperature while also reducing the presence of hot and cold spots in your room.

For durability and longevity, the mats are manufactured from Fluoropolymer conducting insulation with PVC outer insulation. The 200w/m² underfloor heating mats can be installed easily due to the rapid fit sticky mesh technology, and with a lifetime warranty, you can rest easy once they are installed. The thermostats are also covered by specific manufacturer backed warranties.

Features & Benefits: BodenWarme Electric Undertile Heating Mat 200w with Black Wifi Thermostat

• Ideal for rooms with high levels of heat loss
• The mats feature a dual-core wire with simple, single connection point
• Robust 3.6mm wire for minimal increase in floor height
• Durability provided with tough Fluoropolymer conducting insulation with PVC outer insulation
• Lifetime manufacturer-backed warranty (heat mats) for total peace of mind
• Easy to install quickly due to the rapid fit sticky mesh mat
• Thermostat with sleek, black design and colour touchscreen
• WiFi connectivity to control and monitor temperature remotely
• Thermostat has a range of features including Key Lock, 7-day weekly programming and adaptive learning

The temperature profile of the BodenWärme Electric Undertile Heating Mat is much closer to the ideal heating profile for a comfortable living environment. As opposed to traditional heating methods such as radiators that produce heat from a single point within a room, BodenWärme's heat mats successfully keeps your feet are kept warm but makes sure your head remains cool. For elevated performance, why not use 6mm or 10mm insulation boards in conjunction with this underfloor heating system? They can improve performance and efficiency by up to 50%.

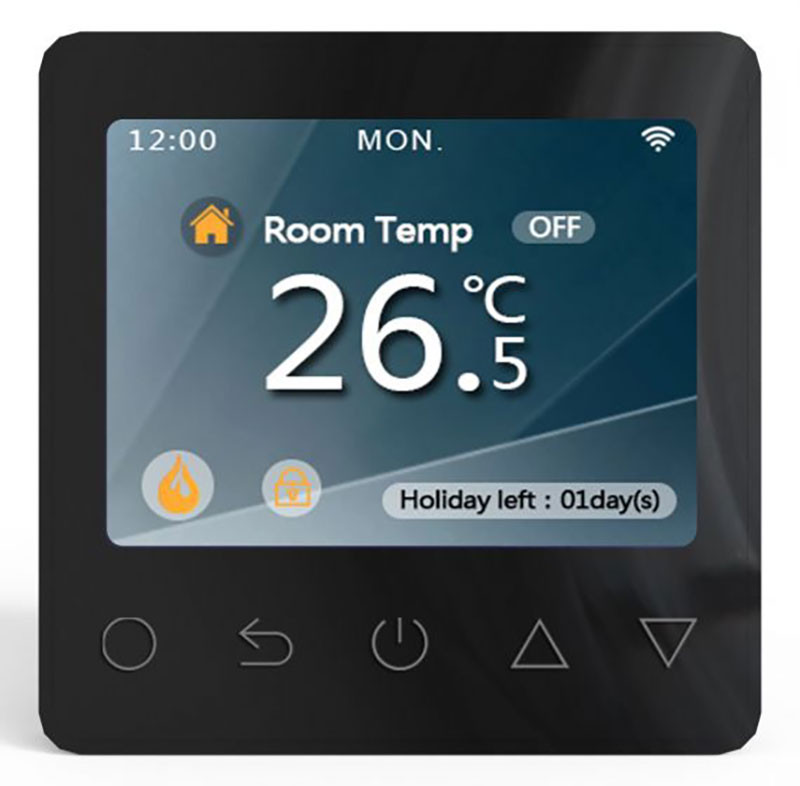

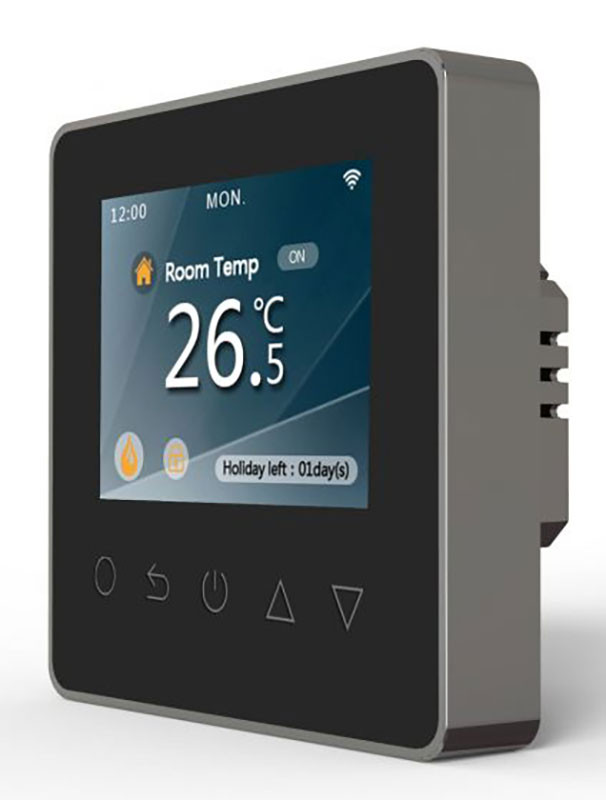

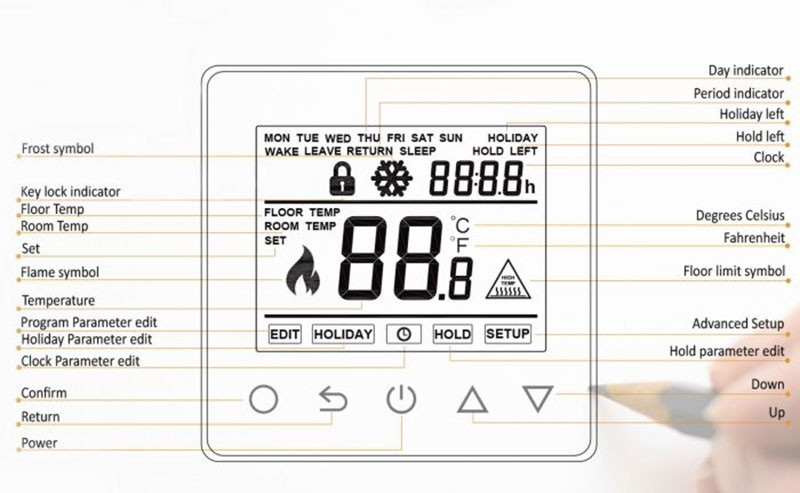

Along with BodenWärme's heating mats, you will also receive a colour touchscreen WiFi Electric Underfloor Heating Thermostat in a sleek black gloss finish. The user-friendly sensitive touchscreen can be used easily and the 'Key Lock' function prevents any change in thermostat settings mistakenly. You can pre-emptively set your underfloor heating settings for specific days and times with a weekly scheduling programme. As for the thermostat's WiFi connectivity, it allows you to control your thermostat remotely via your IOS or Android device, ready for when come back home.

How should I calculate the correct size BodenWärme heating kit?

To calculate which kit size is right for your project, you need to first work out the area of the entire floor space by multiplying the width of the floor by the length. Once this is done, you should then deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eliminate the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between mats and for spacing around the perimeter of the room.

Kit Contents

• 1 x BodenWärme 200w/m² underfloor heating mat with rapid fit sticky mesh
• 1 x WiFi Electric Underfloor thermostat in black
• 1 x Floor temperature sensor with 3m cable and flexible conduit
• 1 x Comprehensive installation manual
• 1 x 25mm fixing tape
• 1 x Lifetime manufacturer-backed warranty

Installation

• BodenWärme's heat mats are particularly suited to standard-shaped rooms and large areas. To install, simply roll out your mat and cut the rapid-fit sticky mesh backing and turn back in the opposite direction as needed. With each mat consisting of wires only 3.6mm, these extremely durable and long-lasting mats minimise the increase in the overall floor height of your room. For added simplicity, the dual-core wire has a single connection point.

Standards & Certification

• CE Certified
• RoHS Compliant (for guaranteed safety)

Please note:

• Heat mats cannot be shortened or have excess cut off at the end. Unfortunately, once the mats have been cut/trimmed, you cannot return them.
• The maximum total size of 200w/m² BodenWärme underfloor heating mats that a single thermostat can control is 16m². Should you require to cover an area greater than 16m², the area should be divided into separate zones and controlled via multiple thermostats.

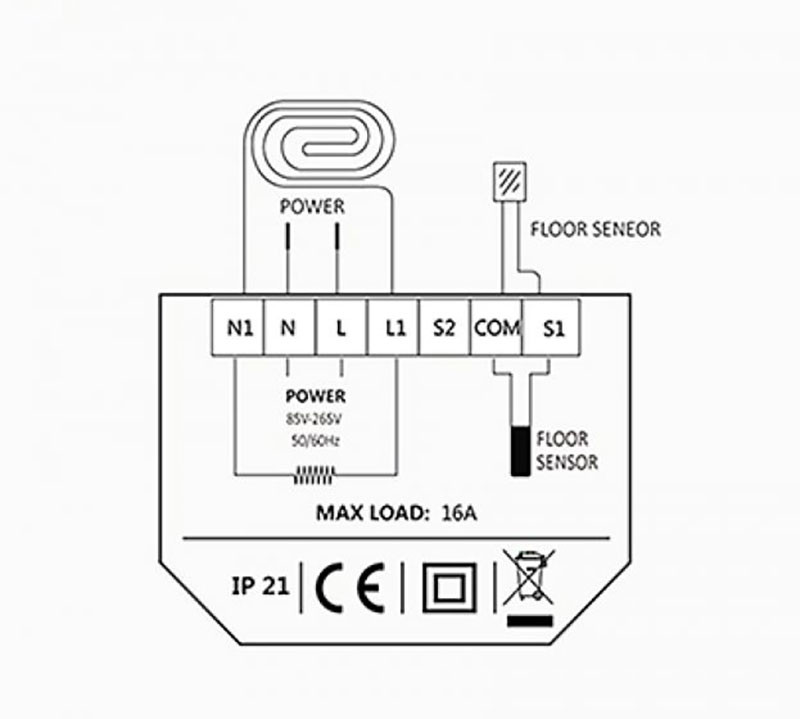

• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
