BodenWarme Electric Undertile Heating Mat 200w with Black dSTAT Thermostat

BodenWärme's 200-watt Electric Undertile Heating Mat with stylish black digital dSTAT Thermostat is the ideal underfloor heating solution for natural stone, porcelain and ceramic floors. The 200w system will maintain an even and comfortable temperature throughout your room and will solve the issue of hot or cold spots, which can be common issues with traditional heating methods such as radiators.

The 200w heating mats are designed for rooms, such as conservatories, that encounter high levels of heat loss. Because of how close the cables within the mats are spaced, the 200w Electric Undertile Heating Mats ensures your room will heat up much quicker and maintain the heat within your rooms for longer. To increase your room's energy efficiency, you can lay the mats over underfloor heating insulation boards, which will result in less time to heat up and a reduction in the amount of heat loss through uninsulated floors.

Features & Benefits: BodenWarme Electric Undertile Heating Mat 200w with Black dSTAT Thermostat

• A great solution for rooms with high levels of heat loss
• Mats have a dual-core wire with simple, single connection point
• Robust 3.6mm wire for low floor height increase
• Tough Fluoropolymer conducting insulation with PVC outer insulation provides durability
• Lifetime manufacturer-backed warranty (heat mats) for total peace of mind
• Easy installation with rapid fit sticky mesh mat
• Neat and glossy black thermostat design

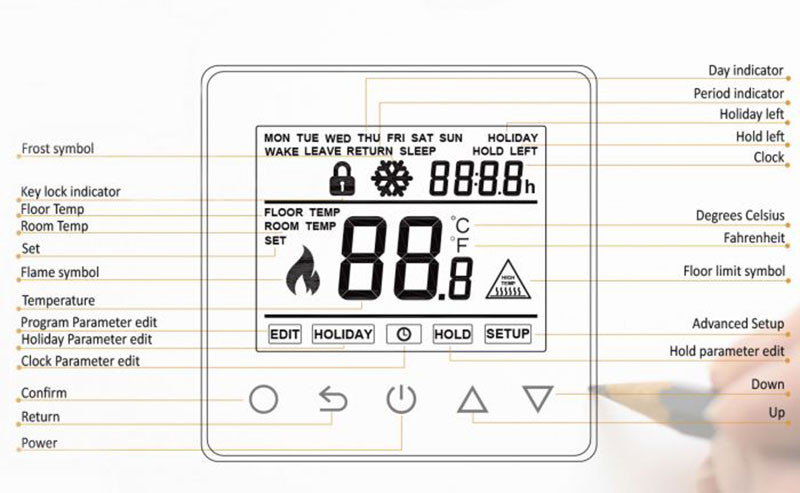

• Digital thermostat has a range of features including Key Lock, 7-day weekly programming and adaptive learning

Each kit comes with a digital dSTAT thermostat, featuring a sleek black finish and boasts a fantastic range of innovative features, including a 'Key Lock', which ensures settings can't be changed by mistake. The adaptive learning system and weekly programming function, which allows you to schedule automated heating of your room at certain times, make the thermostat incredibly user-friendly and easy to operate.

How should I calculate the correct size BodenWärme heating kit?

To calculate which kit size is right for your project, you need to first work out the area of the entire floor space by multiplying the width of the floor by the length. Once this is done, you should then deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eliminate the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between mats and for spacing around the perimeter of the room.

Kit Contents

• 1 x BodenWärme 200w/m² underfloor heating mat with rapid fit sticky mesh
• 1 x dSTAT Electric Underfloor thermostat in black
• 1 x Floor temperature sensor with 3m cable and flexible conduit
• 1 x Comprehensive installation manual
• 1 x 25mm fixing tape
• Lifetime manufacturer-backed warranty

Installation

• BodenWärme's heat mats are particularly suited to standard-shaped rooms and large areas. To install, simply roll out your mat and cut the rapid-fit sticky mesh backing and turn back in the opposite direction as needed. With each mat consisting of wires only 3.6mm, these extremely durable and long-lasting mats minimise the increase in the overall floor height of your room. For added simplicity, the dual-core wire has a single connection point.

Standards & Certification

• CE Certified
• RoHS Compliant (for guaranteed safety)

Please note:

• Heat mats cannot be shortened or have excess cut off at the end. Unfortunately, once the mats have been cut/trimmed, you cannot return them.
• The maximum total size of 200w/m² BodenWärme underfloor heating mats that a single thermostat can control is 16m². Should you require to cover an area greater than 16m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
