BodenWarme Electric Undertile Heating Mat 150w with Manual Thermostat

This BodenWärme 150w Electric Undertile Heating Mat with the simple Manual Electric Underfloor Thermostat is the ideal underfloor heating solution for natural stone, porcelain and ceramic floors, notably where temperature adjustments are infrequent. The heating mat system ensures you can achieve a comfortable and consistent temperature throughout your room.

Unlike other, more traditional methods for heating rooms, BodenWärme's 150w Electric Undertile Heating Mats will solve the issue of hot or cold spots. Designed to fit in a 45mm deep standard single gang backbox, the white Manual Electric Underfloor Thermostat also comes with your purchase. Its simple dial control that is easy to operate will allow you to control your BodenWärme heating system based on the floor temperature and is particularly suited to rooms where minimal adjustments are required.

Features & Benefits: BodenWarme Electric Undertile Heating Mat 150w with Manual Thermostat

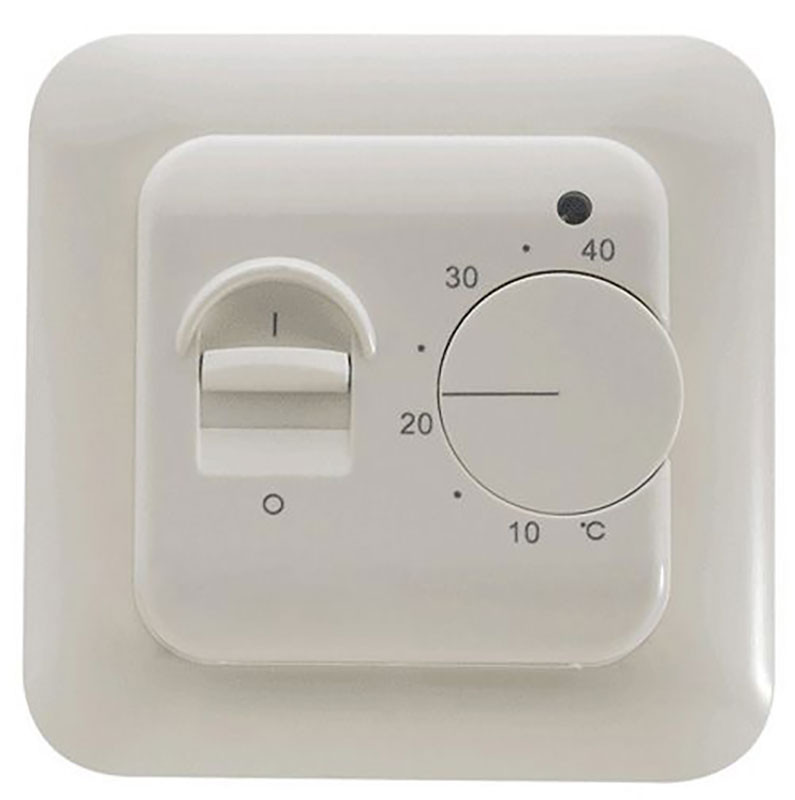

• Simple manual thermostat in white with dial control
• Mat features a dual-core wire with straightforward, single connection point
• Rapid fit sticky mesh met ensures quick and easy installation
• Robust 3.6mm wire keeps the increase in floor height to a minimum
• Tough Fluoropolymer conduction insulation with PVC exterior ensures durability
• Lifetime manufacturer-backed warranty for total peace of mind

If installed within a well-insulated room, BodenWärme's discreet heating mats can be used as a primary heat source. This means no need for radiators, which can take up much needed wall space and often stand out in more modern interiors. To improve the energy efficiency of your room, heat mats can be laid over underfloor heating insulation boards (6mm or 10mm thick), which will result in less time it takes to heat up and a reduction in the amount of heat loss through uninsulated floors.

BodenWärme Heating Mats are also backed with a lifetime warranty. Meanwhile, the thermostats are covered by specific manufacturer-backed warranties providing you with peace of mind.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you need to first work out the area of the entire floor space by multiplying the width of the floor by the length. Once this is done, you should then deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will remove the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between mats and around the perimeter of the room.

Kit Contents

• BodenWärme 150w/m² underfloor heating mat with rapid fit sticky mesh

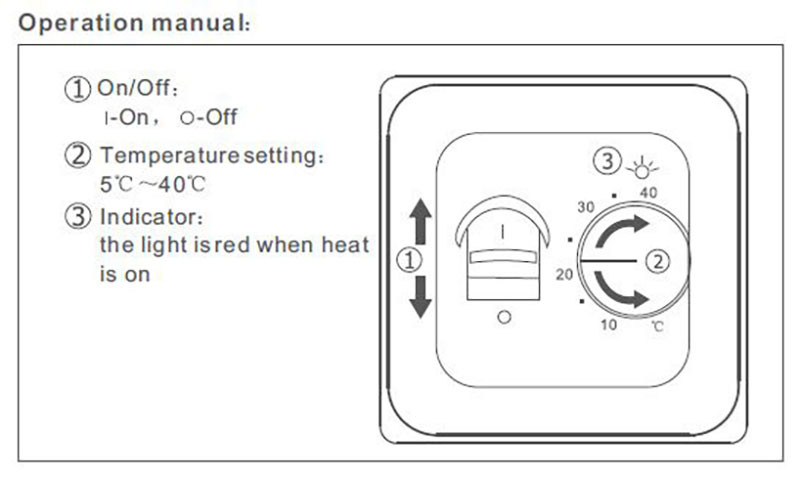

• Manual Electric Underfloor thermostat in white
• Floor temperature sensor with 3m cable and flexible conduit
• Comprehensive installation manual
• 25mm fixing tape

Standards & Certification

• Fully CE Certified
• RoHS Compliant (for guaranteed safety)
• TÜV Certified

Please note:

• Heat mats cannot be shortened or have excess cut off at the end. Unfortunately, once the mats have been cut/trimmed, you cannot return them.
• The maximum total size of 150w/m² BodenWärme underfloor heating mats that a single thermostat can control is 20m². Should you require to cover an area greater than 20m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
