BodenWarme Electric Undertile Heating Mat 150w with Black iSTAT Thermostat

BodenWärme's Electric Undertile Heating Mats with a smart gloss black iSTAT Electric Underfloor Heating Thermostat are the ideal underfloor heating solution for porcelain, ceramic and natural stone floors. The 150w system will ensure your room maintains a consistent and comfortable temperature.

When installed within well-insulated rooms, BodenWärme's 150-watt Electric Undertile Heating Mats can be used as a primary heat source. This reduces the need for traditional radiators, which can often take up large areas of wall space and can also be unsightly. To increase the energy efficiency of your room, it is recommended that you lay the mats over underfloor heating insulation boards, which will help to speed up the time it takes to heat up and reduce heat loss through uninsulated floors.

Features & Benefits: BodenWarme Electric Undertile Heating Mat 150w with Black iSTAT Thermostat

• Dual-core wire with simple, single connection point
• Robust 3.6mm wire keeps the increase in floor height to a minimum
• Tough Fluoropolymer conducting insulation with PVC outer insulation ensures durability
• Lifetime manufacturer-backed warranty for total peace of mind
• Rapid fit sticky mesh mat ensures ease and speed of installation
• Stylish glossy black thermostat design with chrome frame
• WiFi connectivity, allowing you to control temperature remotely
• Thermostat has a range of features including Key Lock, 7-day weekly programming and adaptive learning

Designed to eliminate the issue of hot or cold spots, the BodenWärme's Electric Undertile Heating Mat's rapid fit sticky mesh means installation is both quick and easy, particularly in comparison to cable systems. These durable and reliable BodenWärme Heating Mats are backed with a lifetime guarantee, while the thermostats are covered by specific manufacturer-backed warranties providing you with peace of mind.

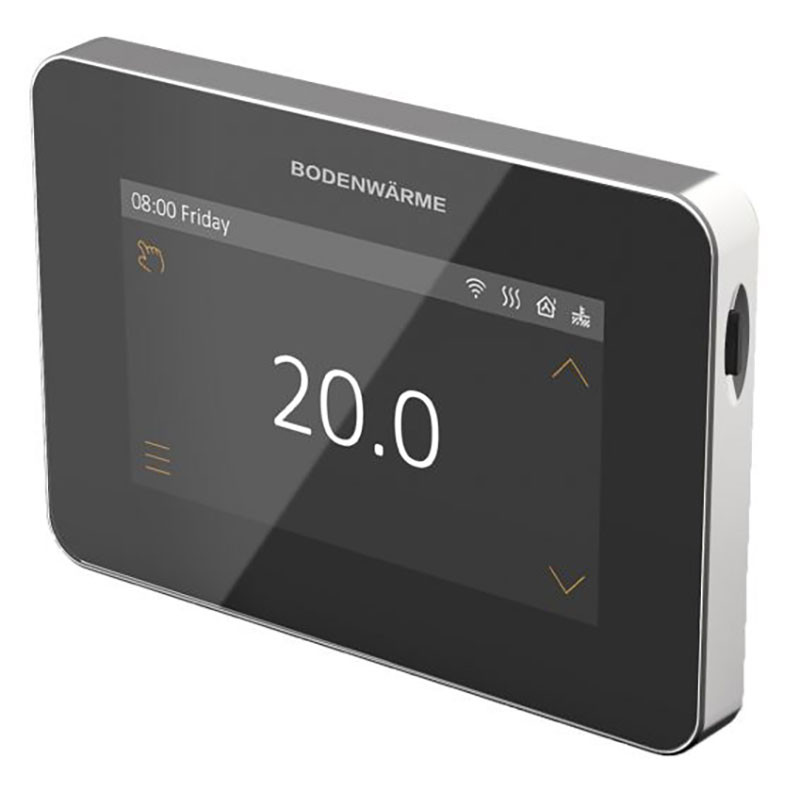

Each kit comes with a touchscreen iSTAT Electric Underfloor WiFi Thermostat, featuring a contemporary gloss black fascia and a sleek chrome frame. With a range of innovative features, including a 'Key Lock', adaptive learning system and weekly programming function, the thermostat's WiFi connectivity means you can control the system remotely via an Android or IOS device. So, even if you're not home to adjust the temperature, you can operate the system to ensure you have your desired temperature ready for your arrival.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you need to first work out the area of the entire floor space by multiplying the width of the floor by the length. Once this is done, you should then deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will remove the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between mats and around the perimeter of the room.

Installation

• Particularly well suited to large, standard-shaped rooms, BodenWärme's heat mats are very quick and easy to install. Simply roll out your mat, cut the sticky mesh backing, and turn back in the opposite direction as needed. With each mat consisting of wires only 3.6mm, these extremely durable and long-lasting mats minimise the increase in the overall floor height of your room. For added simplicity, unlike carbon film systems, the dual-core wire has a single connection point.

Kit Contents

• BodenWärme 150w/m² underfloor heating mat with rapid fit stick mesh
• iSTAT thermostat in black
• Floor temperature sensor with 3m cable and flexible conduit
• Comprehensive installation manual
• 25mm fixing tape

Standards & Certification

• CE Certified
• RoHS Compliant (for guaranteed safety)

Please note:

• Heat mats cannot be shortened or have excess cut off at the end. Unfortunately, once the mats have been cut/trimmed, you cannot return them.
• The maximum total size of 150w/m² BodenWärme underfloor heating mats that a single thermostat can control is 20m². Should you require to cover an area greater than 20m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
