BodenWarme Electric Undertile Heating Cable Kit 150w with White dSTAT Thermostat - 20m²

Code:

CABLE150WHITEdSTAT20m

Free UK Delivery

View full product details

Ask a question about this product

Create a wishlist

Description

Wake up to luxurious warmth every day with the BodenWärme 150W Electric Undertile Heating Cable Kit, complete with a sleek white dSTAT thermostat. Designed specifically for ceramic, porcelain, and natural stone floors, this energy-efficient system eliminates cold spots while maintaining a cozy, even temperature. Ideal for bathrooms and irregularly shaped rooms, the flexible heating cable adapts effortlessly around fixtures and architectural features.

Engineered for durability, the 3.6mm dual-core wire keeps floor height increase minimal, while the Fluoropolymer insulation with a PVC outer layer enhances longevity. The modern dSTAT thermostat offers adaptive learning, 7-day programming, and a Key Lock function, allowing precise, hassle-free control. This smart and stylish heating solution delivers unmatched warmth and convenience, making your home more comfortable than ever.

Features & Benefits: BodenWarme Electric Undertile Heating Cable Kit 150w with White dSTAT Thermostat - 20m²

Ideal for small and irregularly shaped rooms
Digital thermostat includes Key Lock, 7-day weekly programming and adaptive learning
Lifetime warranty for total peace of mind

How do I calculate the correct size of BodenWärme heating kit?

First measure the total floor area by multiplying the width by the length. Then subtract fixed furniture with a clearance of less than 50mm above the floor to prevent hot spots. With the total area minus deductions, deduct an additional 10% as this will allow for the spacing between cables and around the perimeter of the room.

Kit Contents

1 x BodenWärme 150w/m² underfloor heating cable

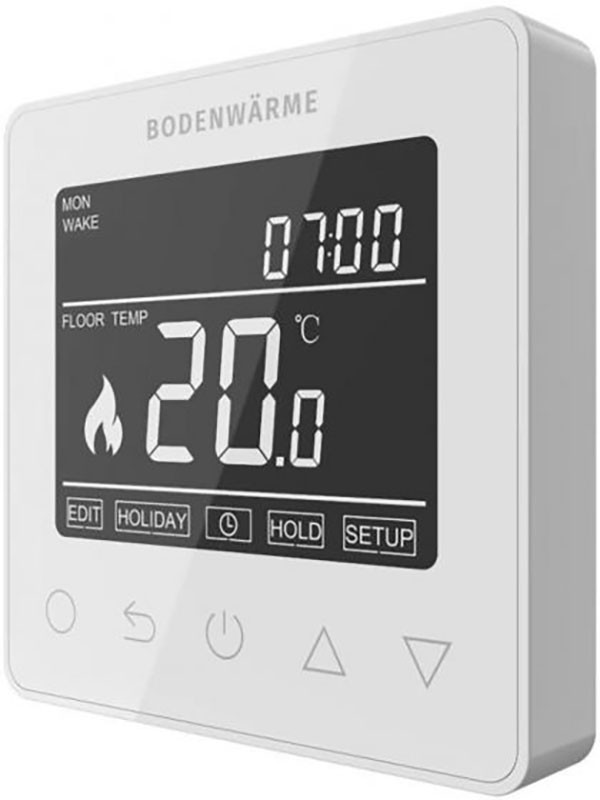

1 x dSTAT Electric Underfloor thermostat in white
1 x Floor temperature sensor with 3m cable and flexible conduit
1 x Installation manual
1 x 25mm fixing tape
Lifetime warranty

Standards & Certification

CE Certified
RoHS Compliant (for guaranteed safety)

Please note:

Cables cannot be cut or trimmed; once altered, they are non-returnable.
A single thermostat controls up to 20m² of 150W/m² BodenWärme heating cables. Larger areas require separate zones with multiple thermostats.
All mains electrical connections must be done by a certified electrician per Part P regulations. The system must be protected by a 30mA RCD, located in the consumer unit or a dedicated fused spur.
Ensure the total current does not exceed the circuit's capacity. A standard 13A domestic ring circuit can power the system via a single 13A fused spur.

Specification

Details

Coverage: 20m2

Wattage Output: 150w / m2

Power Supply: AC230V +/-10% 50/60Hz

Certification: ROHS
CE

Element Structure: Dual Core Wire

Cable Thickness: 3.6mm

Cold Tail Length: 3m

Cable Spacing: 80mm

Earth Type: 100% Coverage Earth Shield

Conductor Insulation: Fluoropolymer

Heat Mat Warranty: Lifetime Warranty

Suitable For: Natural Stone
Ceramic Tiles
Porcelain Tiles

Outer Insulation: PVC
