BodenWarme Electric Undertile Heating Cable Kit 150w with Black iSTAT Thermostat

Providing you with flexibility with the layout of your underfloor heating, this 150-watt BodenWärme Electric Undertile Heating Cable Kit with sleek black iSTAT Thermostat is an ideal option for rooms with fixtures and architectural features that need to be circumvented. Also a popular choice for irregularly shaped rooms, the BodenWärme Electric Undertile Heating Cable Kit is designed specifically for ceramic, porcelain and natural stone tiled floors.

The BodenWärme Electric Undertile Heating Cable Kit is able to provide your rooms with sufficient power for a single-source heating solution, as a result preventing radiators from taking up your space. Whereas traditional radiator heating systems are often prone to causing hot and cold spots, the BodenWärme Electric Undertile Heating Cable Kit maintains a comfortable heating profile where your feet can be kept warm and your head can stay cool.

Features & Benefits: BodenWarme Electric Undertile Heating Cable Kit 150w with Black iSTAT Thermostat

• Ideal for bathrooms and any other room where fixtures need to be avoided
• A great choice for small and irregularly shaped rooms
• Robust dual-core 3.6mm wire with simple, single connection point keeps any increase in floor height minimal
• Durability delivered through tough Fluoropolymer conducting insulation with PVC outer insulation
• Black thermostat with sleek design
• Lifetime warranty for total peace of mind
• WiFi connectivity, allowing you to control temperature remotely
• Thermostat consists of a range of impressive features including Key Lock, 7-day weekly programming and adaptive learning

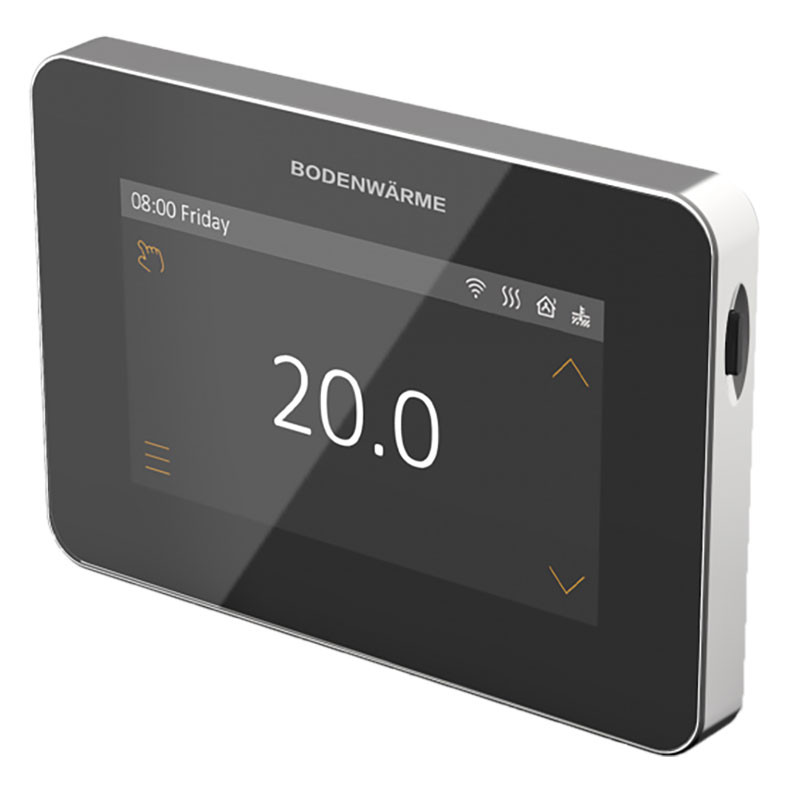

Each kit comes with a touchscreen iSTAT Electric Underfloor WiFi Thermostat, featuring a contemporary gloss black fascia and a sleek chrome frame. With a range of innovative features, including a 'Key Lock', adaptive learning system and weekly programming function, the thermostat's WiFi connectivity means you can control the system remotely via an Android or IOS device. So, even if you're not home to adjust the temperature, you can operate the system to ensure you have your desired temperature ready for your arrival.

The robust and reliable BodenWärme Electric Undertile Heating Cable Kits are backed with a lifetime warranty while the thermostats are covered by specific manufacturer-backed warranties, in turn supplying you with peace of mind.

How should I calculate the correct size BodenWärme heating kit?

To calculate which kit size is right for your project, you need to first work out the area of the entire floor space by multiplying the width of the floor by the length. Once this is done, you should then deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eliminate the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between cables and for spacing around the perimeter of the room.

Kit Contents

• 1 x BodenWärme 150w/m² underfloor heating cable
• 1 x WiFi Electric Underfloor thermostat in black
• 1 x Floor temperature sensor with 3m cable and flexible conduit
• 1 x Comprehensive installation manual
• 1 x 25mm fixing tape
• Lifetime Warranty

Standards & Certification

• CE Certified
• RoHS Compliant (for guaranteed safety)

Please note:

• Cables cannot be shortened or have excess cut off at the end. Unfortunately, once the cables have been cut/trimmed, you cannot return them.
• The maximum total size of 150w/m² BodenWärme underfloor heating cables that a single thermostat can control is 20m². Should you require to cover an area greater than 20m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
